Accessible installation shafts
Business Campus in Garching

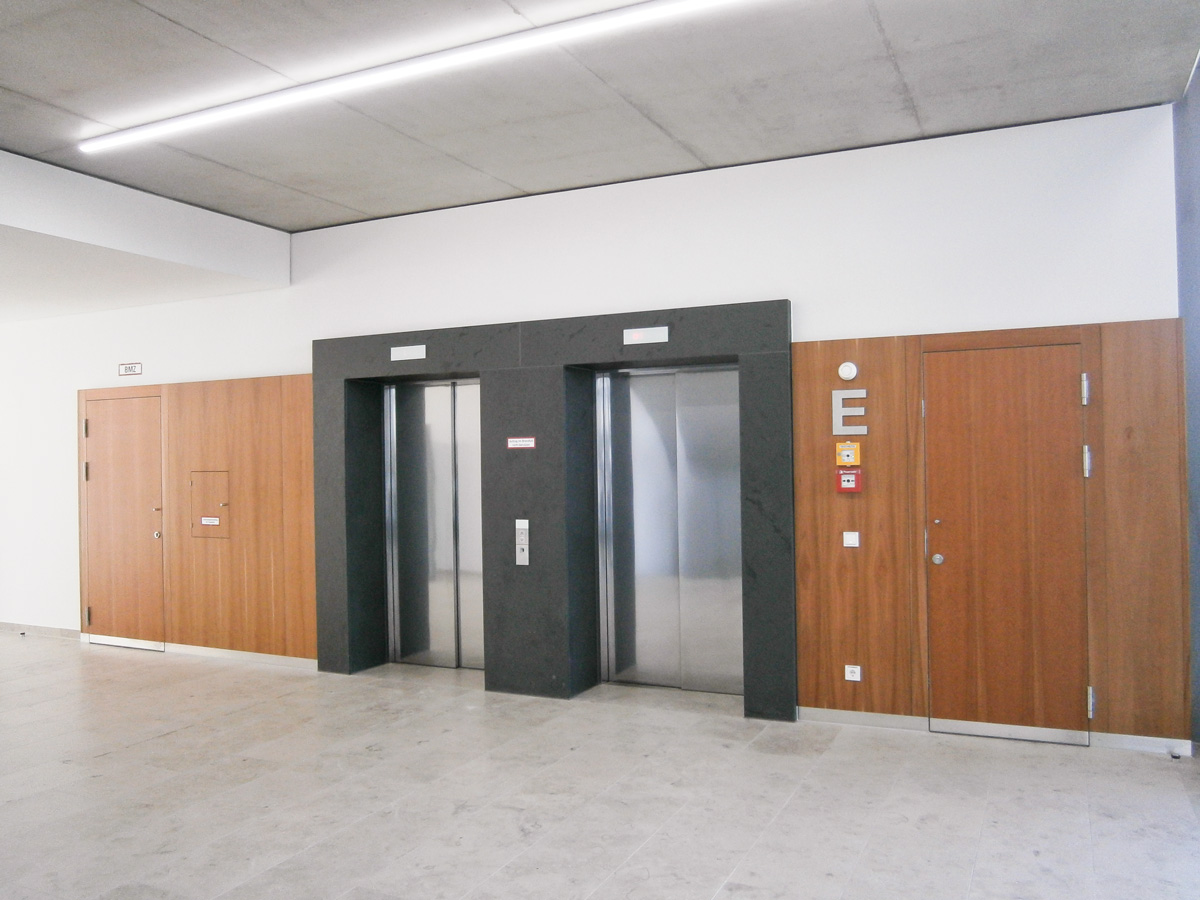

Accessible installation shafts needed to be separated with a fire-resistant partition at the Business Campus in Garching near Munich. To meet this need, 60 PRIODOOR ETX inspection flaps were installed in the stairwell. The unique feature of the project were the lowering floor seals and doors with three-sided frame. The Business Campus chose a real wood veneer surface in American cherry.
| Project data | |
|---|---|
| Project location: | Garching |
| Building: | Business Campus, new office building |
| Year of construction: | 2014 – 2015 |
| Solution: | Large-format PRIODOOR ETX |
| Material: | Non-combustible panel with surface coating, classification A2 – s1, d0 |
| Fire-resistance rating: | 90 Minuten |
| Protective target: | Fire-resistant separation of accessible installation shafts |
| Special features: | Flush installation of 60 PRIODOOR ETX with three-sided frame and lowering floor seal, surface in American cherry real wood veneer |
Mit dem Laden der Karte akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren
MORE IMPRESSIONS
Inspection opening closure for special solutions
PRIODOOR ETX
Overview of product details
- Fire-resistance rating 30/90 minutes
- Smoke protection
- Tight seal
- Install in solid wall, gypsum plaster walls or PRIOWALL wall system
- Single or double-leaf design
- Full block frame
- Profile half cylinder locking mechanism
- Full smoke and fire protection seals, self-foaming in case of a fire
- Also available with a three-sided frame and floor seal
Download
Referenzbericht “Begehbare Installationsschächte”
PDF | Stand: 09/2018 | ca. 2,60 MB
